RME Fireface UC

The RME Fireface UC is a high-performance USB audio interface known for ultra-low latency and good driver stability. Designed for professional audio applications, it offers up to 36 channels of I/O (18 in / 18 out), including 8 analog inputs/outputs, ADAT, SPDIF, and MIDI connectivity.



Properties



Inputs and Outputs (Total 36 Channels)
  • Analog I/O:
    • 8 analog inputs (2 XLR/TRS combo mic/line/instrument, 6 TRS line level)
    • 8 analog outputs (balanced TRS)
  • Digital I/O:
    • ADAT: 8 channels in/out (expandable via optical for additional I/O)
    • SPDIF: stereo in/out (coaxial)
  • MIDI I/O:
    • 1 MIDI input and 1 MIDI output



Microphone Preamps
  • 2 high-quality mic/instrument preamps with:
    • 48V phantom power
    • Up to 65 dB of gain



Audio Quality
  • Sample rates: up to 192 kHz
  • Dynamic range: Up to 114 dBA on analog outputs



Voltage to Digital Conversion and Vice Verca

Add some table with conversion factors for different input and output conversion factors ...

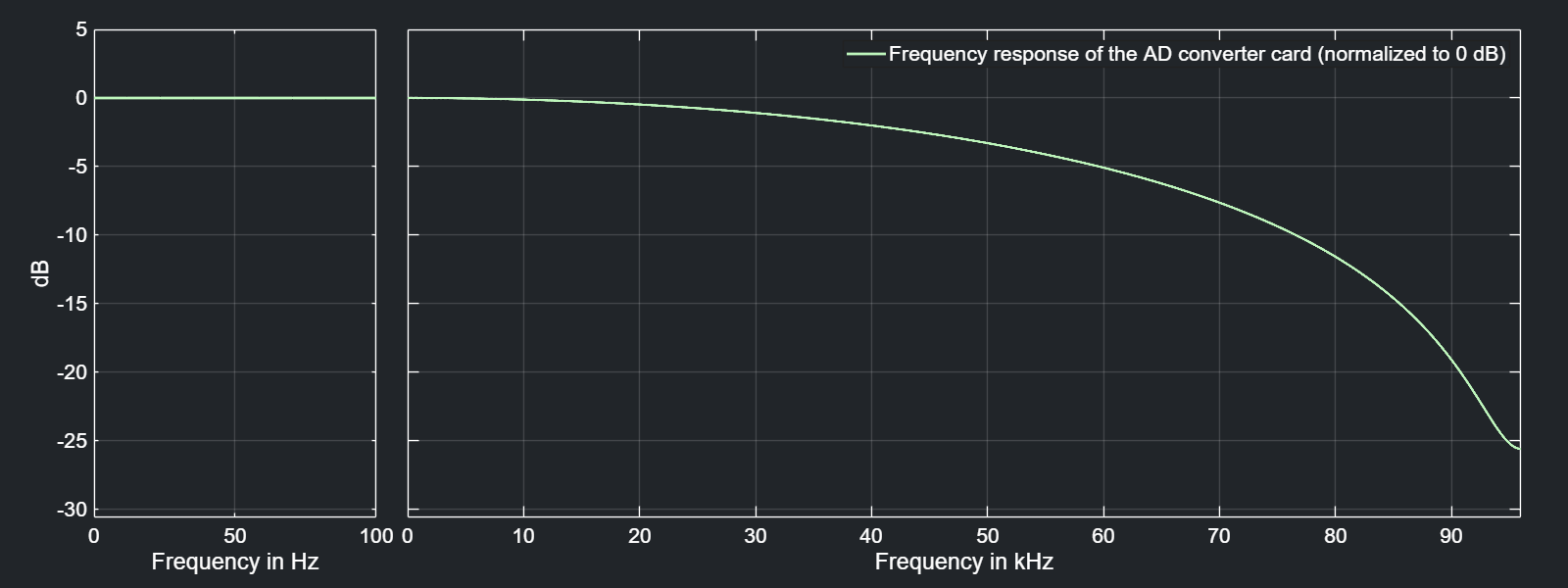

Frequency Response - Analog-to-Digital-Conversion

Add details ...

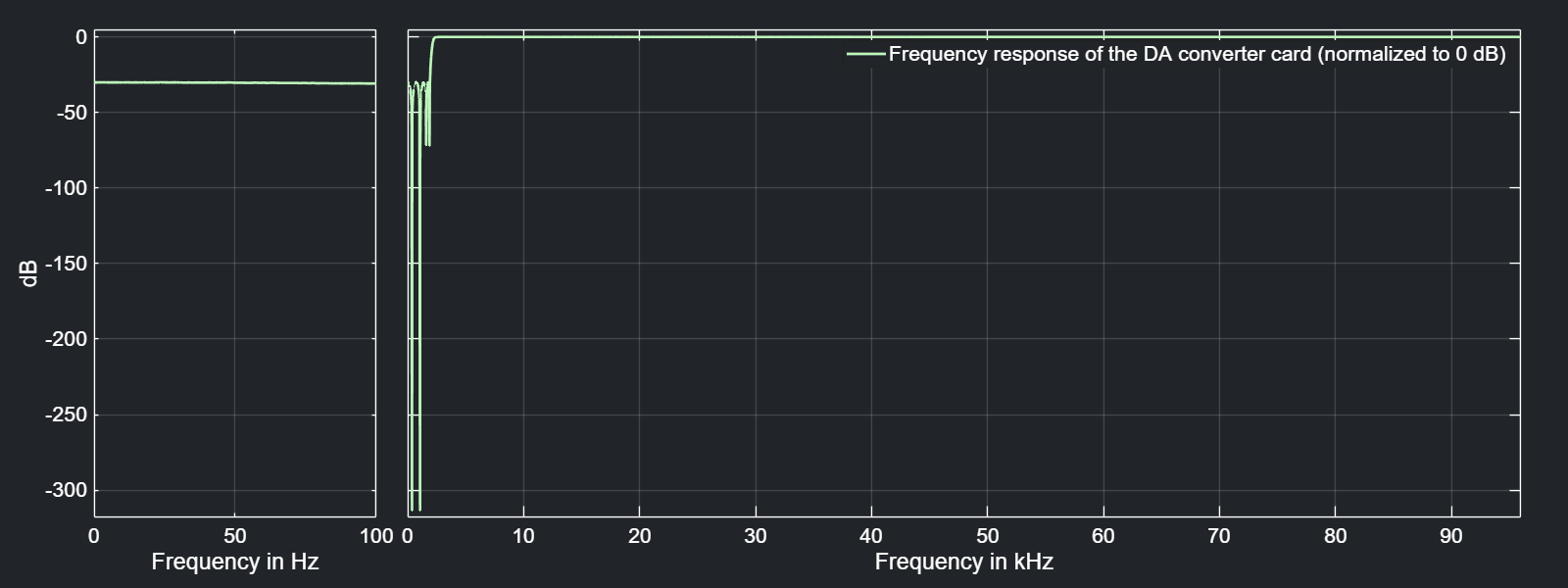

Frequency Response - Digital-to-Analog-Conversion

Add details ...



Noise Measurements

Add details ...



Clipping Levels

Add details ...
